- Product Detail
-
Max Pcb Size:
W410*D480mm
Use:
Motherboard Repair
Voltage:
110/220V
Machine Weight:
65KG
Machine Dimension:
L650*W630*H850mm
Application:
Laptop Playstation BGA Chip Repair
Temp Measuring Interface:
1pcs
Placement Mode:
Semi Automatic
Applicable Chips:
Max 70*70mm Min 1*1 Mm
Characteristic:
X/Y Automatically Controlled
Mini Pcb Size:
W10*D10mm

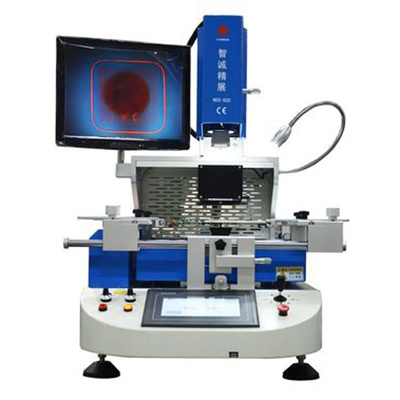

WDS620 Advanced Temperature Control on Semi Automatic BGA Rework Station for Optimal Results
Technology parameter

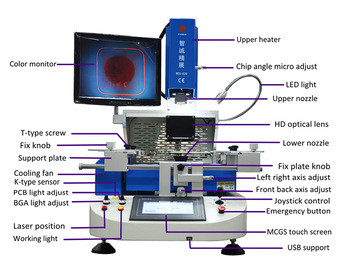

Power supply AC 220V±10% 50/60Hz Total power Max 5300W Heater power Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W Electrical material Driving motor+PLC smart temp.controller+color touch screen Temperature controlling (high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃ Locating way V shape slot,PCB support jigs can adjust,laser light do fast centering and position Applicable chips Max 70×70mm Min 1×1 mm PCB size Max 410×380mm Min 10×10 mm Overall dimension L650×W630×H850mm Temperature Interface 1 pcs Weight of machine 60KG Color White&Blue
WDS620 Advanced Temperature Control on Semi Automatic BGA Rework Station for Optimal Results

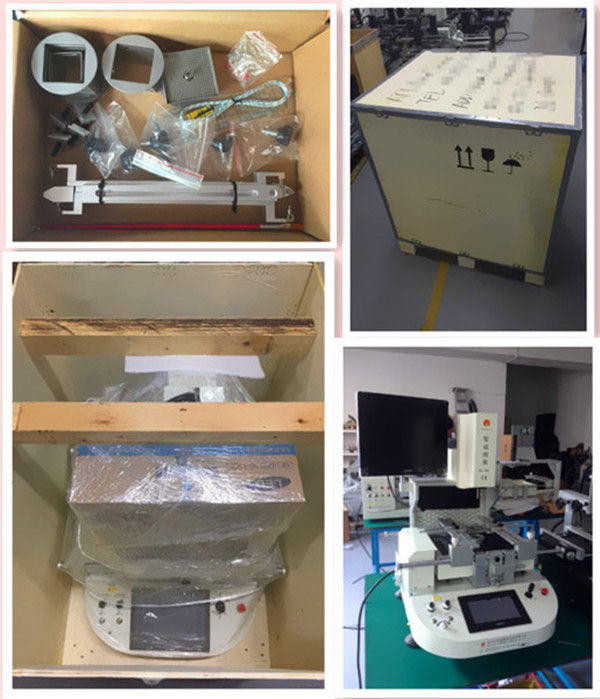

Product Details Place of Origin: China Brand Name: WDS Certification: CE Model Number: WDS620 Document: Product Brochure PDF Payment & Shipping Terms Minimum Order Quantity: 1 Packaging Details: wooden case Delivery Time: 3-5 working days Payment Terms: T/T, Western Union, MoneyGram Supply Ability: 150 UNITS PER MONTH
Document: Product Brochure PDFCategories:
keyword:
Semi Automatic BGA Rework Station
Factory Tour
More than 10 years of experience in BGA rework station and X-ray industrial machinery production.
